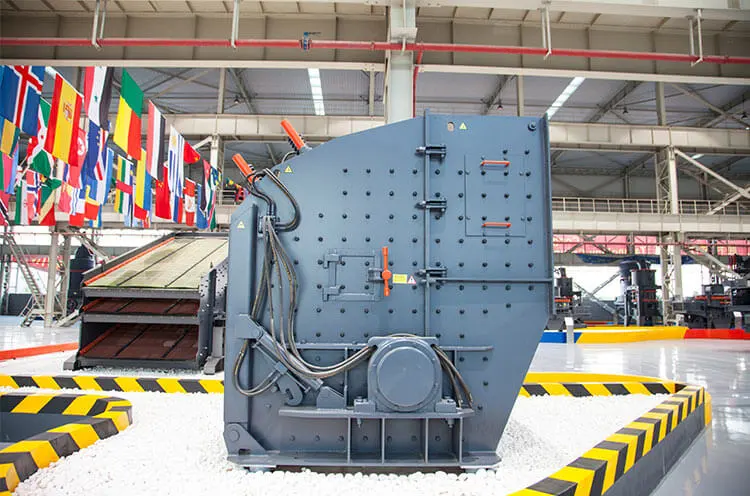

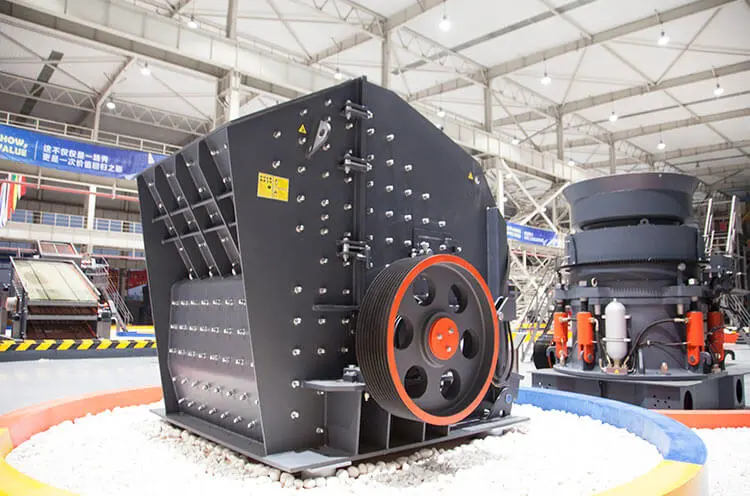

PFW impact crusher for aggregate production

Don't hesitate any longer, submit your inquiry now and let the PFW impact crusher open a new chapter of efficient production for your company and reap rich rewards!
Zhengzhou MiningAlliance Machinery Co.,LTD. Henan, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/66cfd7603dfc4b7004f304ac/66d56c26c70a712e82152eb9/20240905172131/pfw-impact-crusher-1-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/66cfd7603dfc4b7004f304ac/66d56c26c70a712e82152eb9/20240905172131/pfw-impact-crusher-2-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/66cfd7603dfc4b7004f304ac/66d56c26c70a712e82152eb9/20240905172131/pfw-impact-crusher-3-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/66cfd7603dfc4b7004f304ac/66d56c26c70a712e82152eb9/20240905172131/pfw-impact-crusher-4-1.jpg

Recommended Products

Product Parameters
Rotor size (mm)
PFW1214Ⅲ: φ1150×1400
PFW1214Ⅱ: φ1150×1400
PFW1315Ⅲ: φ1300×1500
PFW1315Ⅱ: φ1300×1500
PFW1318Ⅲ: φ1300×1800
PFW1318Ⅱ: φ1300×1800
PFW1415Ⅲ: φ1400×1500
PFW1415Ⅱ: φ1400×1500
See more
Feed opening(mm)
PFW1214Ⅲ: 570×1430
PFW1214Ⅱ: 1100×1430
PFW1315Ⅲ: 625×1530
PFW1315Ⅱ: 1200×1530
PFW1318Ⅲ: 625×1830
PFW1318Ⅱ: 1200×1830
PFW1415Ⅲ: 800×1530
PFW1415Ⅱ: 1300×1530
Maximum feed size (mm)
PFW1214Ⅲ: 250
PFW1214Ⅱ: 500
PFW1315Ⅲ: 300
PFW1315Ⅱ: 600
PFW1318Ⅲ: 300
PFW1318Ⅱ: 700
PFW1415Ⅲ: 350
PFW1415Ⅱ: 700
Production capacity (tons/hour)
PFW1214Ⅲ: 90-170
PFW1214Ⅱ: 130-200
PFW1315Ⅲ: 180-270
PFW1315Ⅱ: 180-320
PFW1318Ⅲ: 220-300
PFW1318Ⅱ: 240-400
PFW1415Ⅲ: 280-350
PFW1415Ⅱ: 300-480
Power (kW)
PFW1214Ⅲ: 132(175)
PFW1214Ⅱ: 132(175)
PFW1315Ⅲ: 200(270)
PFW1315Ⅱ: 200(270)
PFW1318Ⅲ: 250(350)
PFW1318Ⅱ: 250(350)
PFW1415Ⅲ: 250(350)
PFW1415Ⅱ: 250(350)
Weight (tons)
PFW1214Ⅲ: 16
PFW1214Ⅱ: 18.5
PFW1315Ⅲ: 20
PFW1315Ⅱ: 21.5
PFW1318Ⅲ: 23
PFW1318Ⅱ: 25.5
PFW1415Ⅲ: 22.5
PFW1415Ⅱ: XXV
Dimensions (mm)
PFW1214Ⅲ: 2550×2310×2100
PFW1214Ⅱ: 2400×2310×2550
PFW1315Ⅲ: 2960×2570×2380
PFW1315Ⅱ: 2700×2570×2800
PFW1318Ⅲ: 2960×2870×2380
PFW1318Ⅱ: 2700×2870×2800
PFW1415Ⅲ: 3120×2650×2660
PFW1415Ⅱ: 2900×2700×3000
Close
Product Details
Product Introduction
With thirty years of industry experience and technology accumulation, Zhengzhou Kuanglian Machinery Co., Ltd. proudly launches PFW impact crushers to 137 countries and regions around the world. This outstanding mining equipment is tailor-made for modern metallurgy, mining, chemical industry and other industries. As a model of digital processing technology, it greatly optimizes the overall efficiency of the production line. The centralized grease lubrication system not only simplifies daily maintenance and reduces the difficulty of maintenance, but also improves the cleanliness of the working environment. The unique double wedge adjustment mechanism makes the discharge port adjustment more flexible and efficient, and can accurately meet the needs of different particle sizes. Choosing Zhengzhou Kuanglian's PFW impact crusher is choosing a reliable partner to inject strong power into the development of your business.
Advantages and features
1. Use digital processing technology to greatly improve the overall efficiency of the production line.
2. Centralized grease lubrication system simplifies maintenance work, reduces maintenance difficulty, and keeps the working environment clean.
3. Unique double wedge adjustment mechanism, flexible and efficient adjustment of the discharge port, and precise control of particle size.
4. Relying on Zhengzhou Kuanglian’s thirty years of industry experience and technical accumulation, we provide customized solutions.
Application Scenario
PFW impact crusher is widely used in many industries such as metallurgy, mining, chemical industry, etc. It performs well in the field of aggregate production, and plays an important role in the production of sand for construction and gravel for road paving. It is suitable for enterprises and customers with relevant production needs around the world, especially those who focus on production efficiency, product quality and convenient equipment maintenance.
Corporate Information
Zhengzhou MiningAlliance Machinery Co.,LTD.
99%
On-time delivery rate
Less than 3 hours
Response time
1.2 million square meters
Construction area
Service Guarantee
Service Information
Address
No. 12, Jingguang Middle Road, Erqi District, Zhengzhou City, Henan Province
Advisory Message
Pre-sales advice
1. Contact number: For more product information and service details, please call our customer service hotline +8613849049686.
2. Email: You are welcome to send an email to [email protected] and we will respond to your inquiries and needs as soon as possible.
After-sales service
We have 62 professional after-sales engineers who can meet the emergency response requirements when equipment fails, ensuring that all problems with global equipment are professionally answered and handled within 24 hours.
proposed price
Please contact us for the latest quotation
